DIG Micro-Line 1/4 Inch Non Pressure Compensating Dripline

Micro-Line Dripline is Versatile and Flexible

DIG 1/4” Microline Dripline is a versatile and flexible, UV-protected small-diameter dripline that is suitable for a wide range of irrigation applications, both commercial and residential. The dripline may be installed above ground and covered with mulch or bark to conserve water or for aesthetic reasons. Each of the .52 GPH drip emitters in the dripline is built with a large filter along its cross-section to ensure that moving particles on the bottom of the dripline do not enter the labyrinth water path, supporting the trouble-free operation.

The dripline is available with emitters in 6", 9" or 12" spacing.

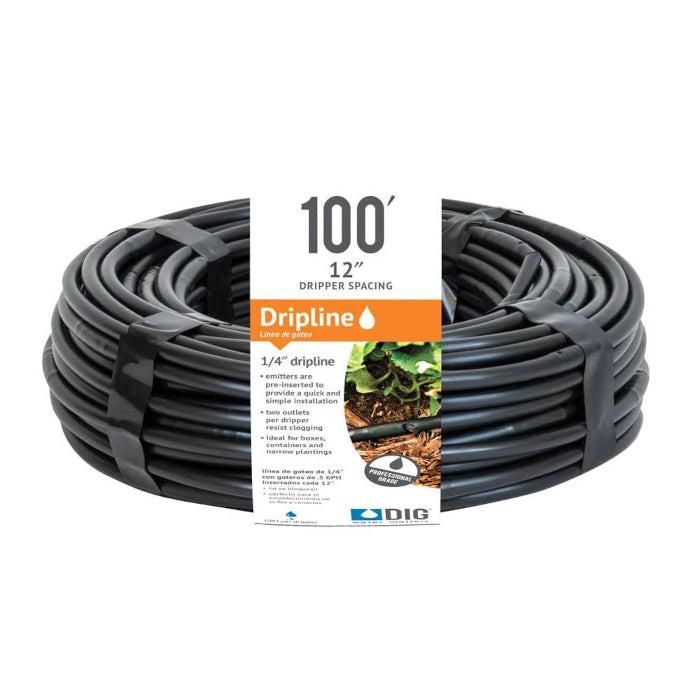

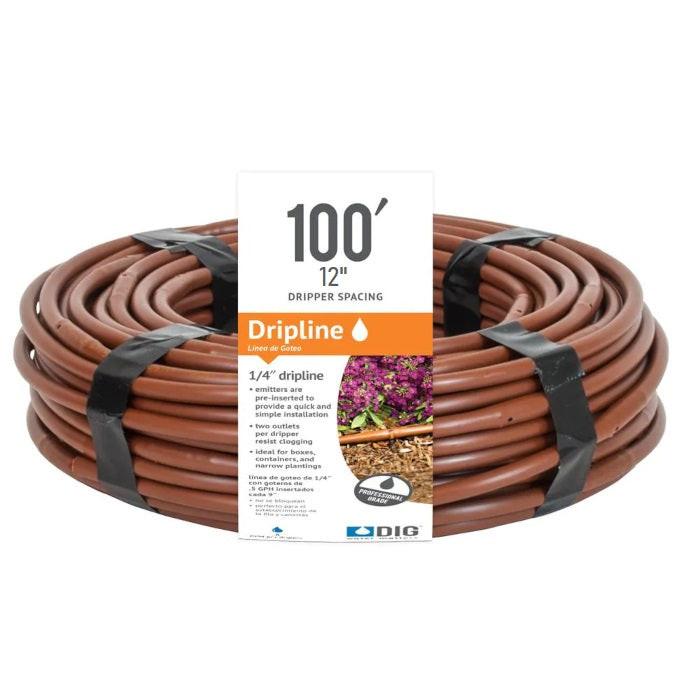

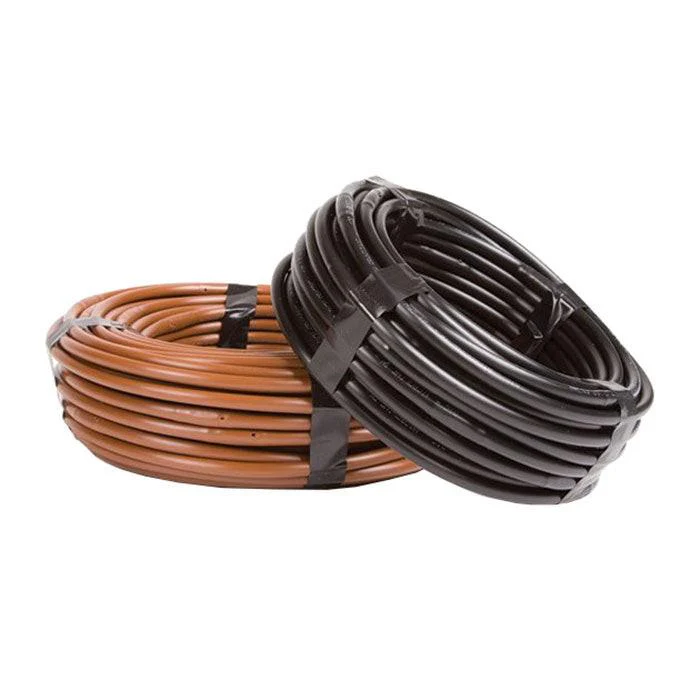

Available in 100', 500', 1000' and 3000' coils (30 m, 152 m, 305 m, 914 m)

Line Diameter of .170" ID x .250" OD

Microline can be used in loops around individual plants or trees, planter boxes, vegetable gardens, window boxes, box gardens, narrow paths of planting areas, or where total saturation is desired along the drip line path while eliminating water staining of fences, windows, and walls. It may be extended from the drip tubing or micro tubing using a 1/4″ barb or attached to our 4- or 6-outlet drip manifolds.

Ideal for a wide range of applications including containers, small trees and narrow plantings. Extremely versatile and flexible, DIG’s 1/4" (6 mm) Micro Dripline presents key advantages over other irrigation methods, utilizing low-cost, small-diameter dripline that can be used in any part of any system for a water-efficient drip irrigation system.

---

Features:

• Manufactured from high quality, UV-resistant resins on a state-of-the art extrusion line to ensure both durabilty and reliability
• Used above ground or under mulch for a variety of applications such as containers and narrow plantings
• Large labyrinth water passage and turbulent flow help reduce clogging
• Inlet filter helps prevent particles from entering the drip emitter labyrinth path
• Resistant to chemicals and fertilizers commonly used in landscape applications
• Used with 1/4″ (6 mm) barbed fittings
• Flexible tubing for easy installation
• Two outlets per drip emitter ensure less chance of clogging
• No special tools or glue are needed

---

Installation:

• Used under mulch or bark to conserve water or for aesthetic reasons
• Designed to be extended from the drip tubing or micro tubing using a 1/4″ (6 mm) barb, or attached into DIG’s 4- or 6-outlet drip manifolds
• Used where total saturation is desired along the dripline path, while eliminating discoloration of fences, windows and walls due to water staining

---

Specifications for the Micro-Line Dripline

• Nominal flow rates: 0.52 GPH (2 L/H) at 15 PSI (1 BAR)
• Operating pressure: 10-25 PSI (.7-1.7 BAR)
• Materials: Dow FINGERPRINT™ DFDA-7510 NT linear low-density polyethylene resin
• Size: 1/4" (6 mm) (.170" ID x .250" OD) (4.445 mm ID x 6.35 mm OD)
• Spacing: 6", 9" or 12" (15 cm, 23 cm, or 30 cm)
• Available in: 100', 500', 1000' and 3000' coils (30 m, 152 m, 305 m, 914 m)
• Minimum bending radius: 1' (.3 m)
• Filter requirement: minimum of 150 mesh
