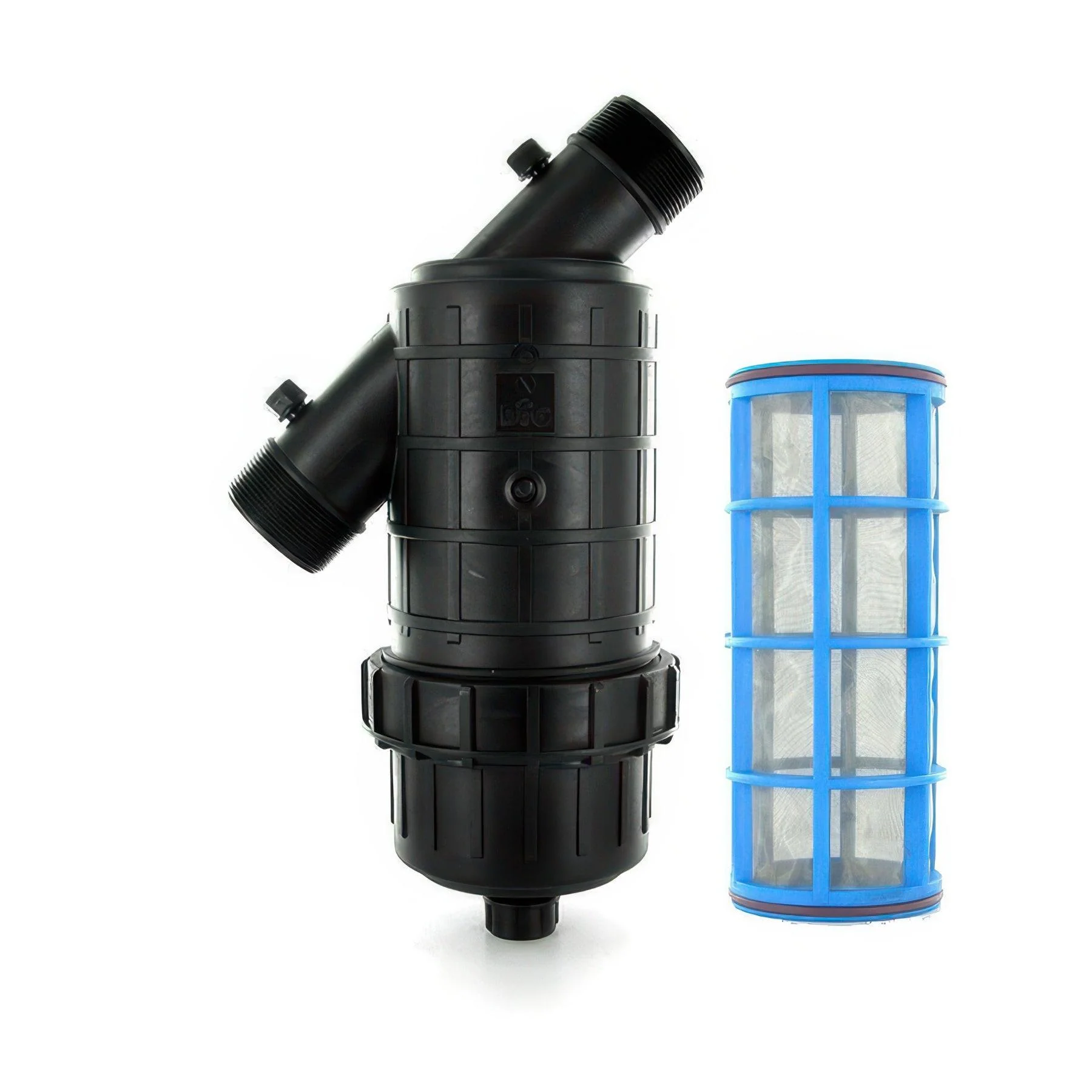

DIG MPT Inline Filter with Stainless Steel Screen

DIG’s 1/2" and 2" plastic screen filters with pipe thread are commonly used in commercial and agriculture installations to protect drip irrigation, micro sprinklers and other low-flow systems from debris that might enter the line and cause blockage of the emitters. The low-maintenance screen filters provide reliable and trouble-free operation by removing fine sand and other particles that could otherwise block the small water passages of the drip and micro sprinklers.

---

Features

• Large filter area and low friction loss allows long intervals between cleaning
• All-purpose filter with a wide range of stainless-steel screens from 80 to 180 microns to suit a wide range of filtration requirements
• Designed to reduce operating costs and deliver high quality filtrate in a minimum space
• Screens have excellent resistance to most common chemicals
• Easy maintenance – the screen can be extracted from the filter for cleaning
• Interchangeable screen and disc elements within the filter
• Access point on the inlet and outlet side for pressure measurement test
• Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions

---

Specifications

• Flow rates:
  • 1 1/2" up to 66 GPM (20 m3/h)
  • 2" up to 80 GPM (15 m3/h) Screen filtration area: 11/2" 85.6 sq. inch (552 cm2)
  • 2" 103.8 sq. inch (670 cm2)
• Operating pressure: up to 120 PSI (8.4 BAR)
• Temperature range: up to 130°F (54°C)
• Stainless-steel screens from 40 to 200 mesh
• Inlet and outlet size: 1 1/2" and 2" MNPT with 3/4" MPT cap
• Filter Materials
  • Housing: polypropylene
• Screen: Stainless steel with polyester body
  • O-ring: EPDM
  • Pressure testing port: polypropylene
  • Pressure testing seals: natural rubber BR
