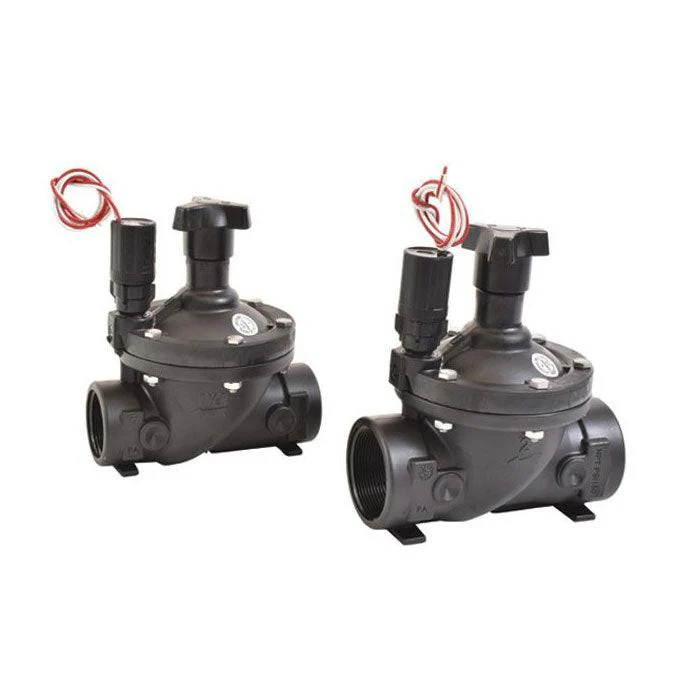

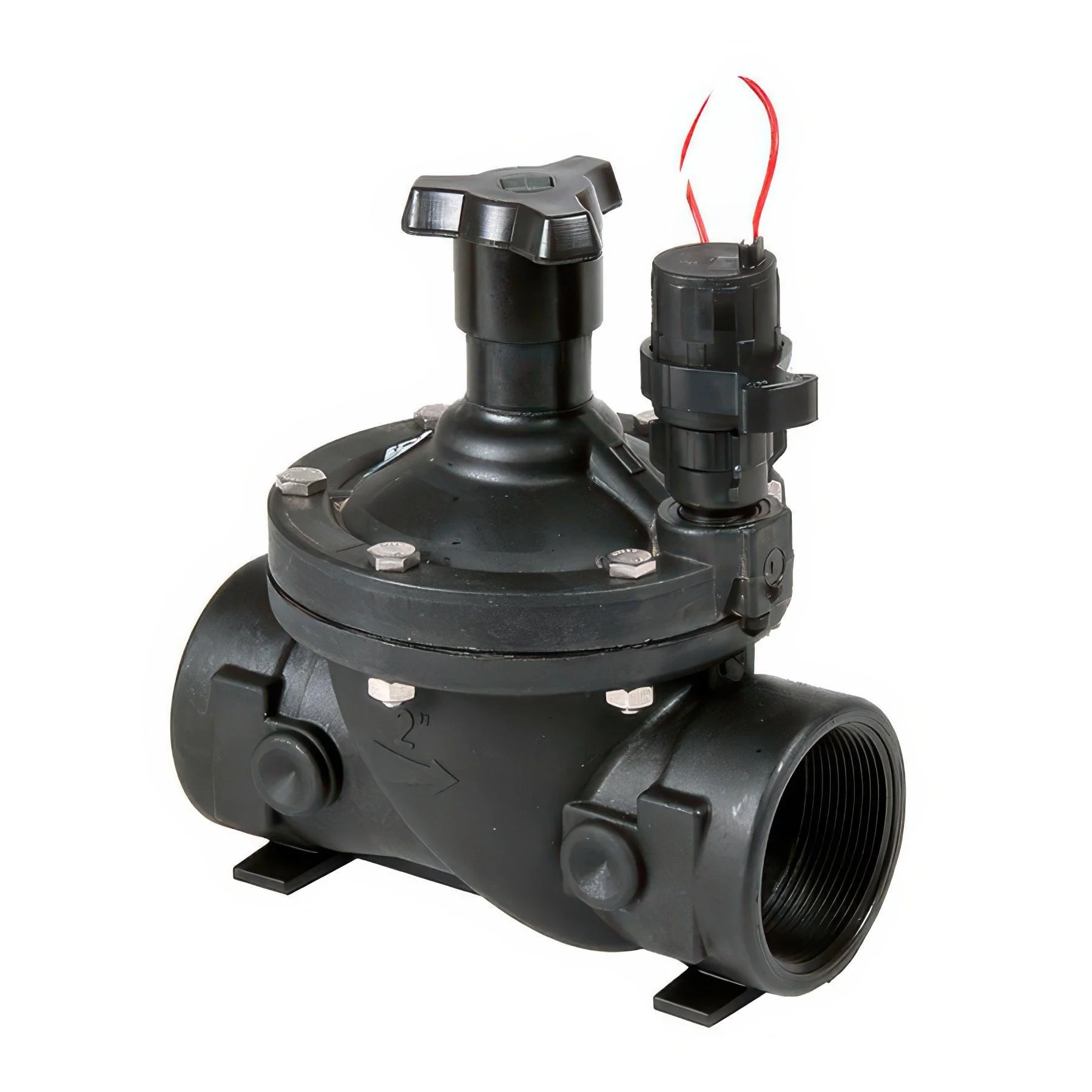

DIG Remote Control Inline Globe Valve with DC Solenoid

In-line valve for use with 720A, 740A, 760A Irrigation Controllers

DIG’s 305DC inline (globe pattern) valves, with a 6-12 VDC, two-way magnetic latching solenoid are suitable for residential, commercial, and agricultural irrigation systems. They support excellent hydraulic performance and long-life operation. The globe valves operate with DIG’s battery-operated controllers and 7X0 Series irrigation controller and use an encapsulated, watertight, two-way magnetic latching solenoid that requires minimal power to operate.

The 305DC valves are heavy-duty control valves constructed of weather-resistant, glass-reinforced nylon and a stainless steel spring to provide superior hydraulic performance with balanced opening and closing at a pressure rate of up to 150 PSI.

---

Features

• Constructed of glass-reinforced nylon with a stainless-steel spring; non-corrosive materials
• High flow rate with low pressure loss
• Compact design with minimal space
• Simple design structure for easy maintenance
• Bonnet secured with 6 SS screws for easy service
• Normally closed
• Easy inline maintenance
• Uses encapsulated, watertight, two-way, 6 to 12 VDC magnetic latching solenoid
• Smooth valve opening and closing prevents pressure surge hazards
• Rugged, reinforced self-cleaning diaphragm provides reliable operation even with contaminated water
• Balanced diaphragm supported by SS spring allows for low opening pressure and secured closing
• Flow control handle for water flow adjustment and drip-tight manual shutoff
• Manual internal bleed override via the solenoid

---

---

Specifications

• Type: globe valve with two-way magnetic latching solenoid
• Operating pressure: 10 to 150 PSI, (.7 to 10.5 bar)
• Body style: globe
• 1.5" and 2" NPT or BSP female inlet and outlet
• Operating flow range:
  • 3/4": .1 to 28 GPM (.23 to 6.4 m3h)
  • 1": .2 to 35 GPM (0.45 to 8 m3h)
  • 1.5": 20 to 132 GPM (4.5 to 30 m3h)
  • 2": 30 to 160 GPM (6.8 to 36 m3h)
• Solenoid: 6-12 VDC, two-way magnetic latching, normally closed, bidirectional pulse
  • Voltage rate: 6 -12 VDC
  • Coil Resistance: 4.7Ω +/- 0.3
  • Pulse Width: minimum 10 mSec
• Operation mode:
  • Red + and white – latch to open
  • Red – and white + released to closed
• Control orifice: 0.65 +/- 0.0002 (1.7 mm)
• Lead wires: 18” (45 cm) UL 1015, AWG 16, 300V - red and white wires
• Temperature range: up to 150 Fahrenheit (0-65 C)

Dimensions

• Valve dimensions:
  • 3/4" and 1": 4.5" H x 4.25" L x 3.12" W, (11.5 cm H x 11 cm L x 8 cm W)
  • 1-1/2": 7.12" H x 6.12" L x 5.75" W, (18 cm H x 16 cm L x 14.5 cm W)
  • 2": 8.5" H x 6.12" L x 5.75" W, (21 cm H x 16 cm L x 14.5 cm W)
• Solenoid dimension top: 3.1" (7.9 cm) L X 1.18" (3.0 cm) D
• Solenoid dimension bottom: 3.1" (7.9 cm) L x 1.18" D (3.0 cm)
• Valve solenoid thread housing: 3/4”-20 UNES-2A
• Adapter thread: 11/16”-12 UN female thread X male ¾”-20male thread
• Solenoid thread: 11/16”-12 UN
• Material:
  • Valve body and cover: Glass reinforced nylon
  • Diaphragm:
    • 3/4" and 1": NBR
    • 1-1/2" and 2": Nylon fabric reinforced polyisoprene (NR)
  • Metal parts and screws: Stainless Steel 303 and 430F
  • Solenoid body: Glass reinforced nylon
  • Solenoid plunger rubber cap: EPDM 80
