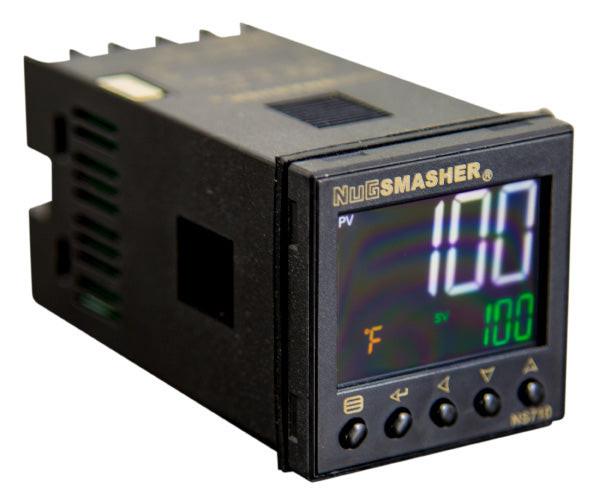

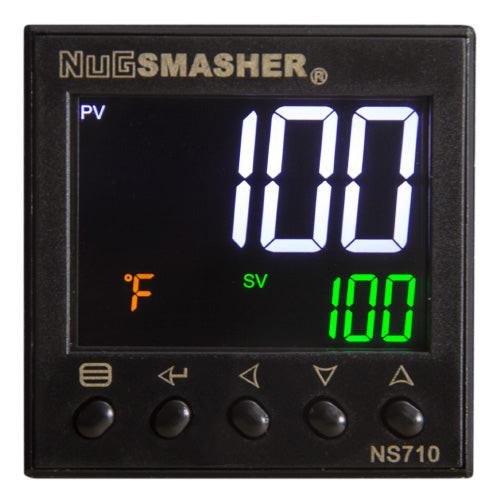

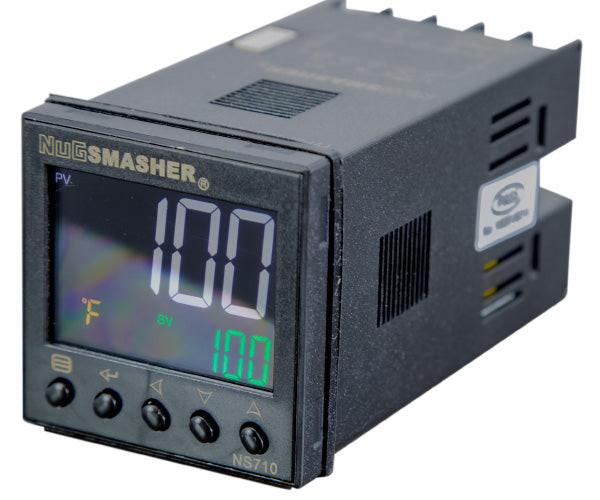

NugSmasher NS-710 Digital Temperature Control

NugSmasher NS-710 Temperature Controller LCD PID

If your in to do it yourself or looking to upgrade an older unit this is the answer. We use digital calibration technology for accurate input measurement accuracy within:0.3% maximum resolution is 0.1℃. We also use advanced artificial intelligent control algorithm with no overshoot function and with auto tuning (AT) and self-adaptation control.

• White large characters color LCD with high contrast LCD display
• Simple to use
• Power circuit protected
• Digital heat control
• 100-240VAC/DC 50/60Hz
• Mounting bracket included
• Has Internal relay 3A/250v 5A/30VDC
• Will control external Solid State Relay (SSR) 12V 50mA
• Thermocouple type supported K,E,J,N and Pt100
• Auto Tune feature AT PID Parameter auto-tuning
• Electromagnetic compatibility (EMC)IEC61000-4-4(Electrical Fast Transient Burst)±4KV/5KHz; IEC61000-4-5(Surge),4KV
