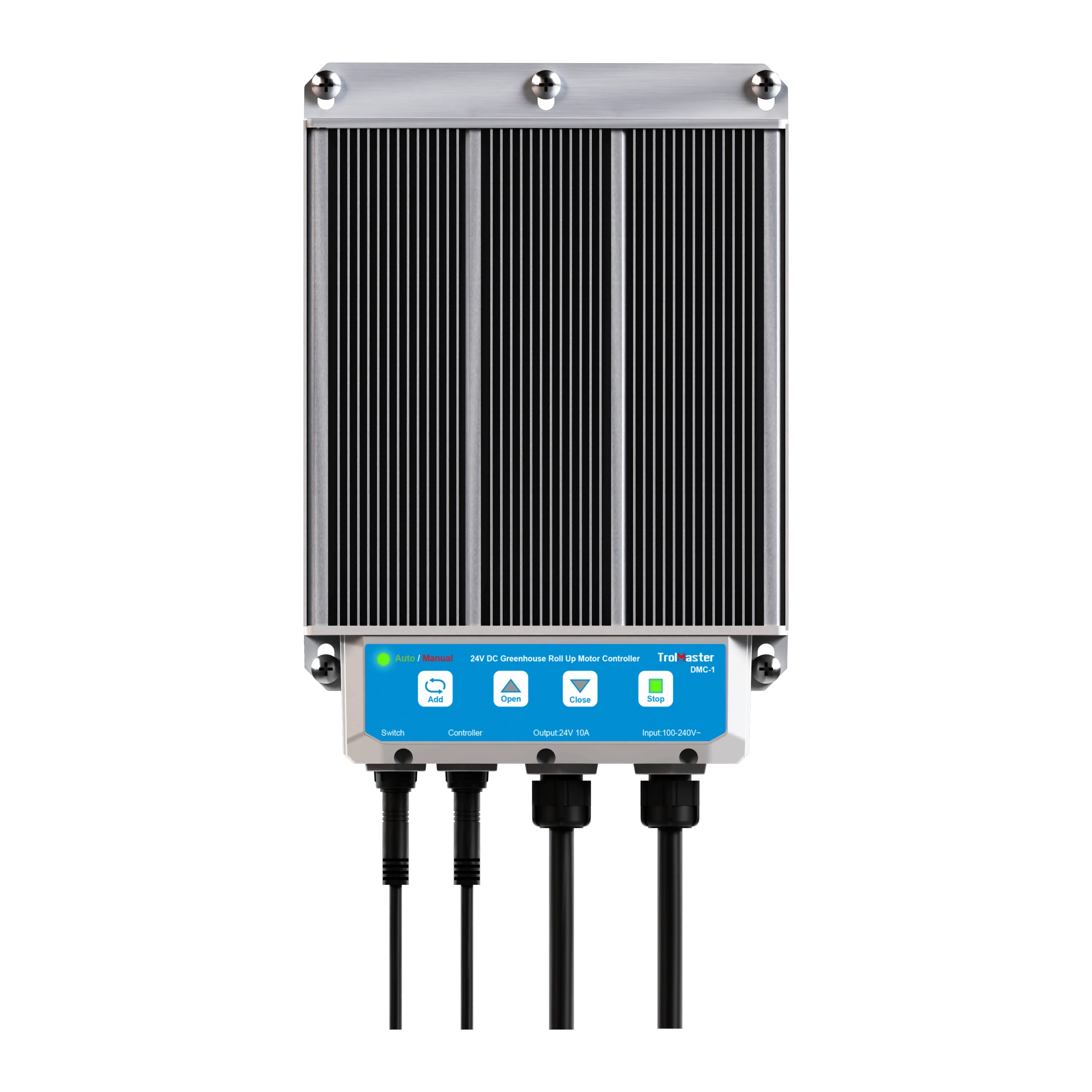

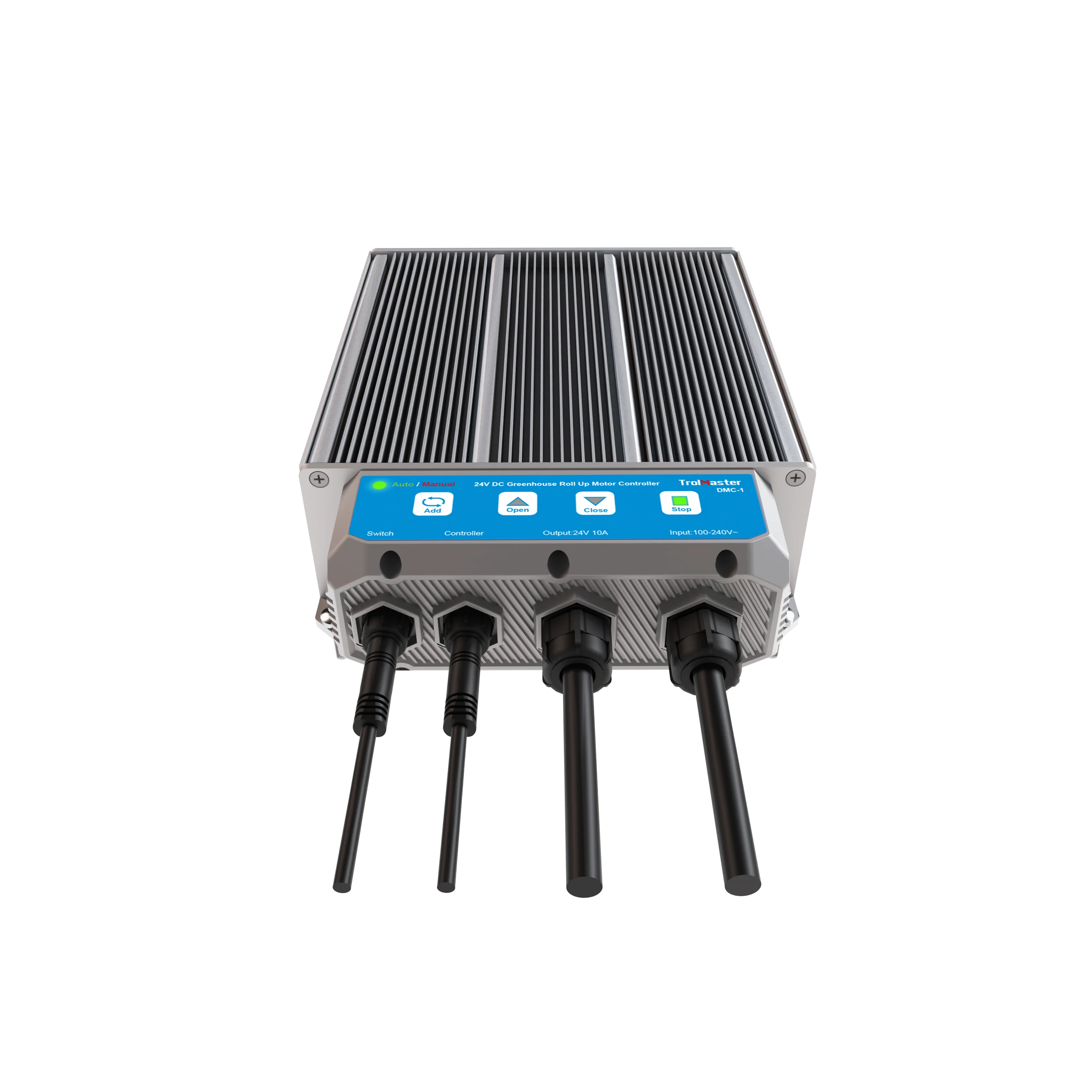

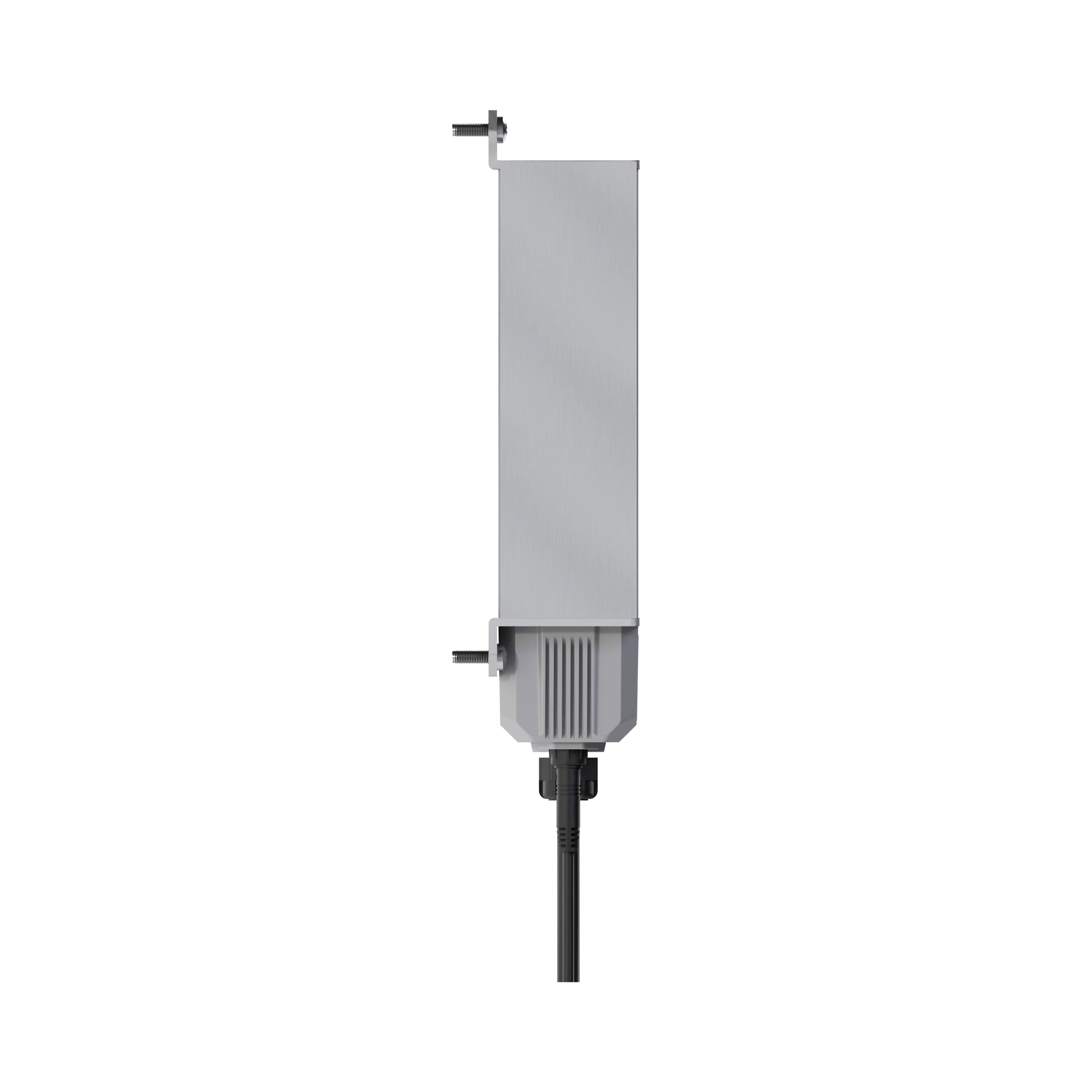

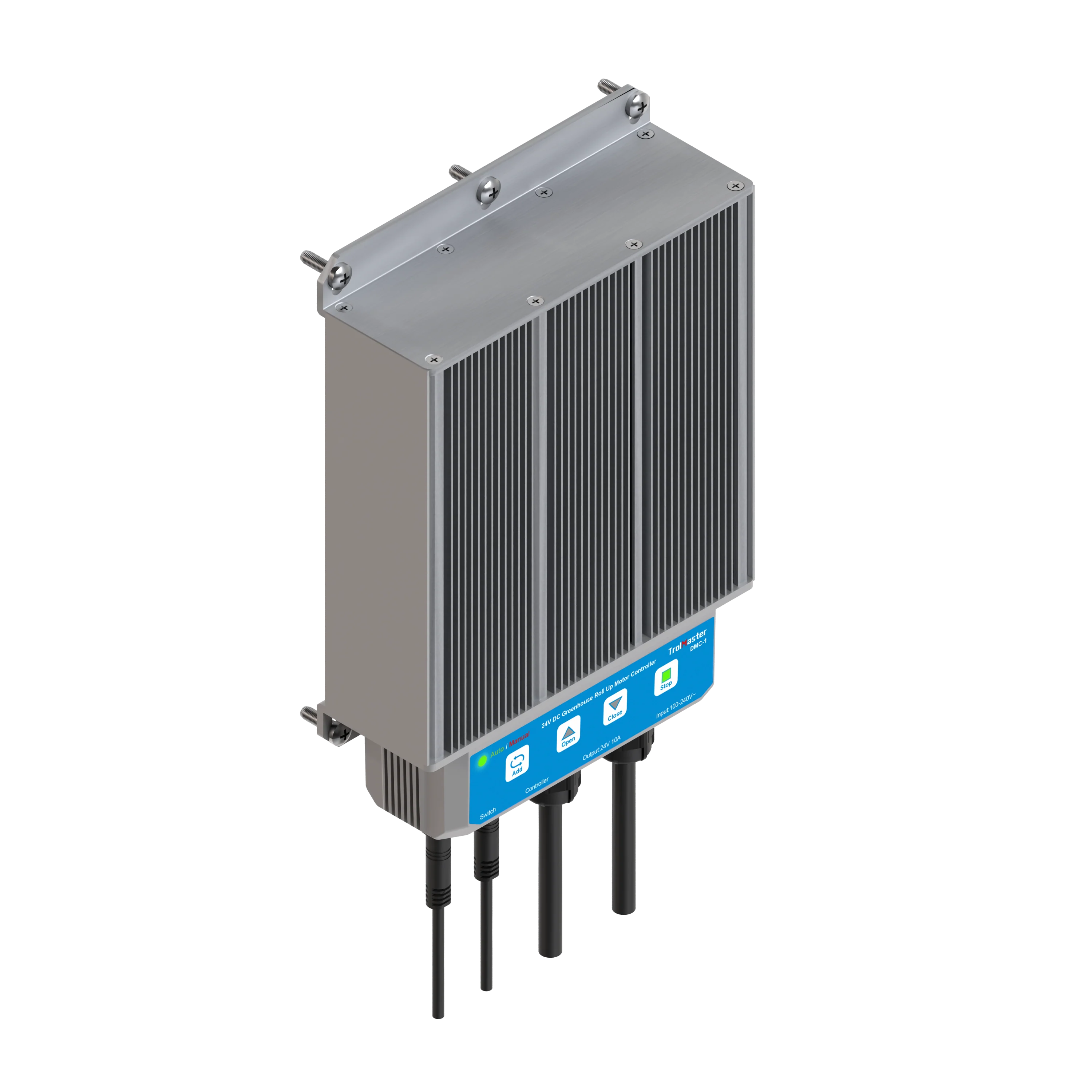

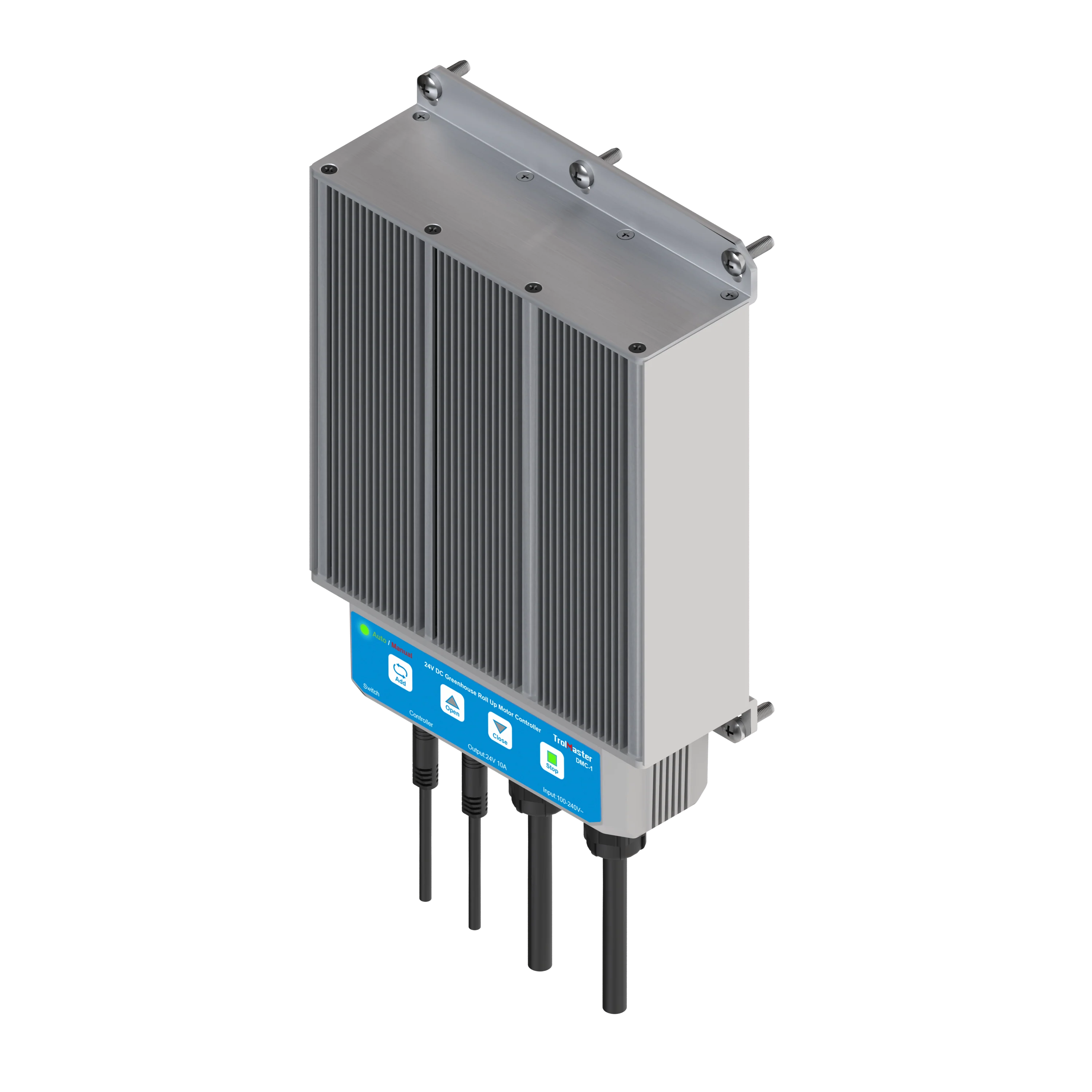

TrolMaster 24V DC Greenhouse Roll Up Motor Controller for Green-X Controller

The DMC-1 is an advanced motor driver for agricultural greenhouse curtains that enables both manual and automated control of curtain motors. It is designed for seamless integration with the GCS (Green-X Greenhouse System) and provides precise motor control, including forward and reverse operation, stopping functions, timeout shutoff, and overcurrent protection. This integration enhances greenhouse management by allowing centralized monitoring and control, optimizing environmental conditions for plant growth and improving operational efficiency.

What's Included

• 1x DMC-1
• 1x Power Cord
• 1x Cross Screw driver
• 1x 12ft RJ12 to 4pin IP65 Connector Cable

---

Features & Benefits

• Seamless Connection with GCS-1
• Assignable control of 24V motors and curtain control
• Plug-and-play

---

Specifications

• Input Voltage: 100-240VAC, 50/60Hz
• Working Environments:
  • Temperature: 32-104°F (0-40°C)
  • Humidity: ≤90% RH
• Waterproof Rating: IP44
• American Wire Gauge (AWG):
  • Output: Cannot be less than 16 AWG
• Communication Method: RS-485 (4-pin waterproof connector)
• No-load Power Consumption: <2W (at 240V input)
• Package Dimensions:
  • Size: 10.83 inches / 275 mm (L) x 6.69 inches / 170 mm (W) x 3.74 inches / 95 mm (H)
  • Gross Weight: 4.63 lbs / 2.1 kg
